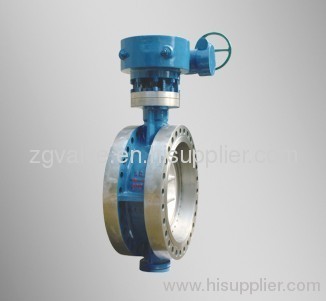

DIN Standard Butterfly Valve D41 manufacturer from China ZHONGGONG VALVE GROUP CO.,LTD

Payment Terms:	T/T
Place of Origin:	Zhejiang, China (Mainland)

Product Detail

Model No.: D41

Production Capacity: 2000

Delivery Date: 30 DAYS

Standard or Nonstandard: Standard

Structure: Butterfly

CLASS150-600LB: 1/2"-48"

Means of Transport: Ocean,Air

Packing: PLYWOOD CASE

Power: Manual

Pressure: Others

Material: Casting

Material can be
Body: SS316/304/Ductile iron/Al-bronze
Disc: SS316/304/Aluminum-bronze/Ductile iron, nickle plated etc.
Stem: SS416/420 etc.
Seat:

Material can be

Body: SS316/304/Ductile iron/Al-bronze

Disc: SS316/304/Aluminum-bronze/Ductile iron, nickle plated etc.

Stem: SS416/420 etc.

Seat: EPDM

Painting: Expoxy paint(antistatic pray)

Methods of operation: Handle

Disc diameter: 50-1200mm

Pressure: PN1.0/1.6MPa

Medium: Acid/Alkali/Oil/Water

Temperature Range: -10-+120

Product Range:

1) Size: NPS 2"-48", DN 50-1200

2) Pressure rating: Class 150-600, PN10-100

3) Basic design: API609, MSS SP-67, EN593

4) Body material: Carbon steel, alloy steel, stainless steel, duplex stainless steel

5) Operation: Lever, worm gear, electric actuator, pneumatic actuator, hydraulic actuator, gas over oil actuator.
